Name: Cutting Submersible Sewage Pump
Brand: Denor Fluid Equipment (wuhan) Co., Ltd.
SKU: New Product 2022
Price: 2,000.00 USD
Availability: InStock

Home > products > Sewer Pump >

Cutting Submersible Sewage Pump

Submersible Sewage Cutting Pump

Vortex Cutting Submersible Pump

Place of Origin:

China

Brand Name:

Denor

Certification:

ISO/CE/TUV

Model Number:

New Product 2022

Request A Quote

Product Details

Material:

Stainless Steel / Cast Iron (Customizable)

Protection Class::

IP68

Voltage:

380V/220V Customizable

Power::

30KW - 250KW

Outlet Range::

DN25 Mm~DN500 Mm

Flow Range::

8m3/h - 4000m3/h

Head Range::

6m - 65m

Warranty:

1 Years

Packaging::

Wooden Case Packing

Highlight:

Cutting Submersible Sewage Pump

Submersible Sewage Cutting Pump

Vortex Cutting Submersible Pump

Payment & Shipping Terms

RELATED PRODUCTS

+86 17371285393

denor.jack1@gmail.com

Contact Now

Product Description

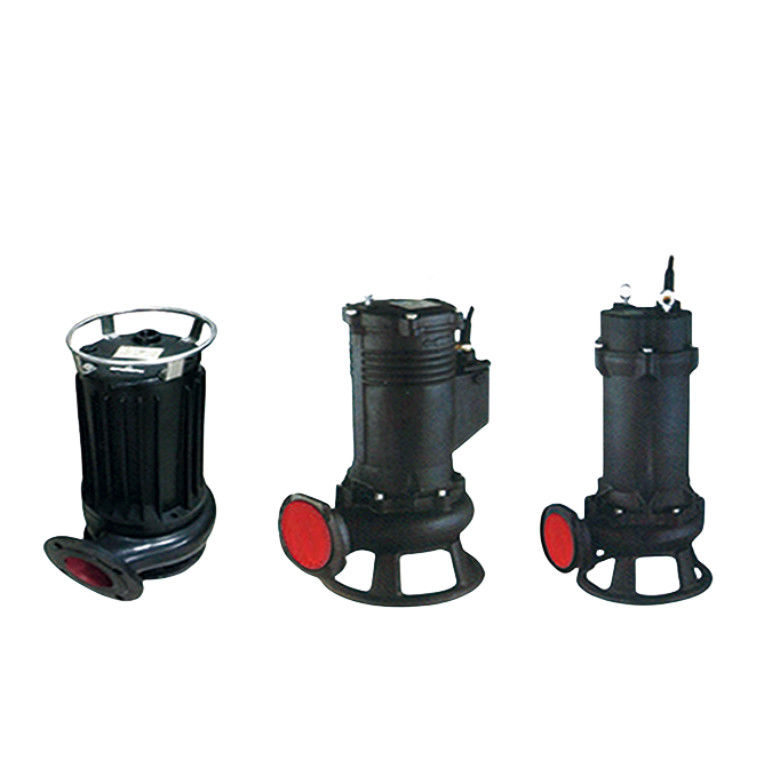

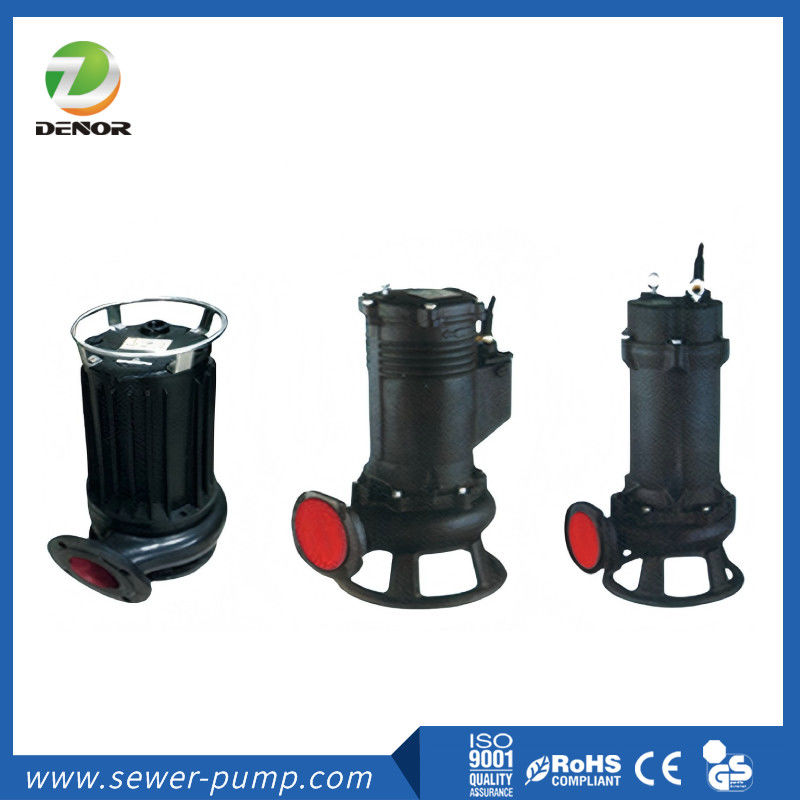

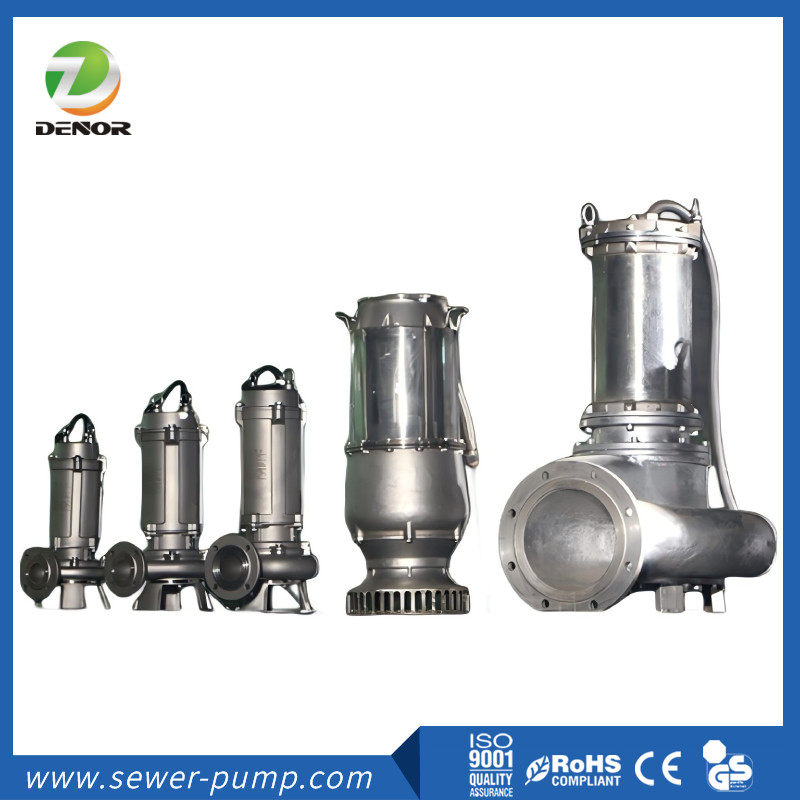

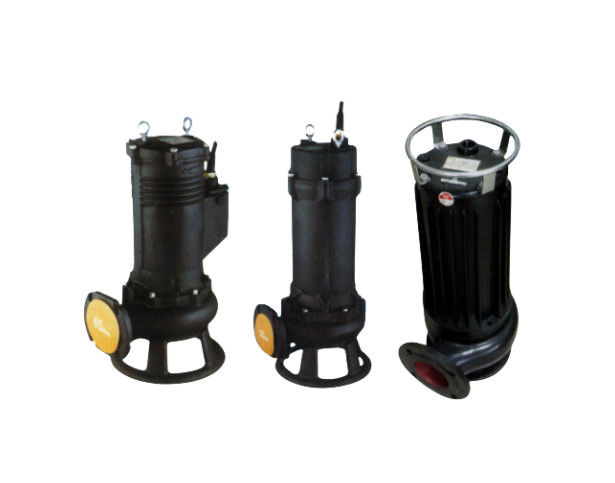

Cutting Submersible Sewage Pump

Powerful Cutting Sewage Pump for Heavy-Duty Sewage and Sludge Handling. WQ-GN powerful vortex cutting submersible sewage pump has the characteristics of energy saving, anti-winding, no clogging, automatic installation and automatic control, etc. It has good effect in discharging solid particles and long fiber garbage.

The submersible sewage cutting pump adopts the advanced impeller structure and new mechanical seal, which can effectively transport solids and long fibers. Compared with the traditional impeller, the impeller of this pump adopts single-channel or double-channel form, which is similar to a curved pipe with the same cross-section size, and has very good flow performance. With a reasonable volute chamber, the pump has high efficiency. The impeller has been tested for dynamic and static balance, so that the pump has no vibration during operation.

WQ-GN powerful vortex cutting submersible sewage pump product features:

1. The large flow channel anti-clogging hydraulic component design greatly improves the dirt passing capacity, and can effectively pass fiber materials 5 times the pump diameter and solid particles with a diameter of about 50% of the pump diameter.
2. Reasonable design, reasonable matching motor, high efficiency and energy saving.
3. The mechanical seal adopts double-end face tandem seal, which is made of hard and corrosion-resistant tungsten carbide. It is durable and wear-resistant, and can enable the pump to run safely and continuously for more than 8,000 hours.

4. The pump has a compact structure, small size, easy movement and installation. There is no need to build a pump room. It can work by submerging in water, which greatly reduces the project cost.
5. An oil-water probe is installed in the pump oil chamber. When the mechanical seal on the water pump side is damaged, water enters the oil chamber and the probe generates a signal to protect the pump.
6. According to user needs, it can be equipped with a fully automatic safety protection control cabinet to monitor the water leakage, electric leakage, overload and overtemperature of the pump to ensure reliable and safe operation of the pump.
7. The double-rail automatic coupling installation system brings great convenience to the installation and maintenance of the pump, and people do not have to enter and exit the sewage pit for this purpose.
8. The float switch can automatically control the start and stop of the pump according to the required water level changes, without the need for special supervision.
9. Ensure that the motor is not overloaded within the operating head range.
10. Depending on the application scenario, the motor can adopt a water-jacketed internal circulation cooling system to ensure the safe operation of the electric pump in a waterless (dry) state.
11. There are two installation methods: fixed automatic coupling installation and mobile free installation, which can meet different usage occasions.

Performance parameters:

Model	Speed	Model	Speed
Caliber-Flow-Head-power	(r/min)	Caliber-Flow-Head-power	(r/min)
(mm)(m3/h)(m)(kw)		( mm)(m3/h)(m)(kw)
25-8-15-0.75	2900	150-180-38-37	1450
25-8-22-1.1	2900	150-180-45-45	1450
32-12-15-1.1	2900	150-180-55-55	1450
32-12-20-1.5	2900	150-200-30-37	1450
40-15-10-1.1	2900	150-200-38-45	1450
40-15-15-1.5	2900	150-200-50-55	1450
40-15-25-2.2	2900	150-200-60-75	1450
50-10-10-0.75	2900	200-250-11-15	970
50-10-20-1.5	2900	200-250-15-18.5	1450
50-10-25-2.2	2900	200-250-18-22	1450
50-10-32-3.0	2900	200-250-22-30	1450
50-10-45-4.0	2900	200-250-30-37	1450
50-10-50-5.5	2900	200-250-35-45	1450
50-15-10-1.1	2900	200-300-7-11	970
50-15-15-1.5	2900	200-300-12-18.5	1450
50-15-25-2.2	2900	200-300-15-22	1450
50-15-32-3.0	2900	200-300-20-30	1450
50-15-38-4.0	2900	200-300-25-37	1450
50-15-45-5.5	2900	200-300-30-45	1450
50-15-50-7.5	2900	200-300-40-55	1450
50-18-30-3	2900	200-300-48-75	1450
50-20-7-0.75	2900	200-300-55-90	1450
50-20-15-1.5	2900	200-300-62-110	1450
50-20-20-2.2	2900	200-300-70-132	1450
50-20-25-3.0	2900	200-300-80-160	1450
50-20-30-4.0	2900	200-350-17-30	1450
50-20-35-5.5	2900	200-350-25-37	1450
50-20-45-7.5	2900	200-350-30-45	1450
50-20-60-1l	2900	200-400-10-22	1450
50-25-25-4.0	2900	200-400-13-30	1450
50-25-32-5.5	2900	200-400-18-37	1450
50-25-40-7.5	2900	200-400-25-45	1450
65-25-10-1.5	2900	200-400-30-55	1450
65-25-15-2.2	2900	200-400-35-75	1450
65-25-22-3.0	2900	200-400-40-90	1450
65-25-30-4.0	2900	200-400-48-110	1450
65-25-38-5.5	2900	200-400-55-132	1450
65-25-45-7.5	2900	200-400-65-160	1450
65-30-18-3.0	2900	250-500-10-30	980
65-30-25-4.0	2900	250-600-9-30	980
65-30-32-5.5	2900	250-600-12-37	1450
65-30-40-7.5	2900	250-600-15-45	1450
65-35-50-11	2900	250-600-20-55	1450
65-35-60-15	2900	250-600-25-75	1450
65-37-13-3.0	2900	250-600-30-90	1450
80-40-7-2.2	1450	250-600-38-110	1450
80-40-12-3.0	2900	250-600-45-132	1450
80-40-15-4.0	2900	250-600-50-160	1450
80-40-25-5.5	2900	300-900-8-37	980
80-40-35-7.5	2900	300-800-12-45	980
80-40-45-11	2900	300-800-15-55	980
80-40-55-15	2900	300-800-20-75	980
80-40-60-18.5	2900	300-800-25-90	980
80-40-70-22	2900	300-800-30-110	1450
80-43-13-3	2900	300-800-35-132	1450
80-50-10-3.0	2900	300-800-40-160	1450
80-50-12-4.0	2900	300-1000-11-55	980
80-50-20-5.5	2900	300-1000-15-75	980
80-50-30-7.5	2900	300-1000-20-90	980
80-50-40-11	2900	300-1000-25-110	1450
80-50-50-15	2900	300-1000-30-132	1450
80-50-60-22	2900	300-1000-35-160	1450
80-65-25-7.5	2900	350-1200-8-45	980
100-65-15-5.5	2900	350-1100-10-55	980
100-65-25-7.5	2900	350-1300-12-75	980
100-72-15-5.5	2900	350-1500-15-90	980
100-72-20-7.5	2900	350-1200-18-90	980
100-72-30-11	2900	350-1200-22-110	980
100-72-40-15	2900	350-1100-28-132	980
100-80-10-4.0	1450	350-1000-36-160	980
100-80-13-5.5	1450	400-1760-7.5-55	580
100-80-20-7.5	1450	400-1200-10-55	580
100-80-30-11	1450	400-2600-6-75	740
100-100-7-4.0	1450	400-1500-10-75	980
100-110-10-5.5	1450	400-2200-9-110	980
100-100-15-7.5	1450	400-2000-15-132	740
100-100-25-11	1450	400-1600-20-132	740
100-100-30-15	1450	400-1700-22-160	980
100-100-35-18.5	1450	400-1500-26-160	980
100-100-40-22	1450	400-2000-22-200	980
100-100-50-30	1450	400-1700-30-200	980
100-100-60-37	1450	400-1800-32-250	740
100-100-70-45	1450	400-2000-30-280	740
125-130-15-11	1450	500-2500-10-110	740
125-130-20-15	1450	500-2000-15-110	740
150-130-10-7.5	1450	500-2800-10-132	740
150-130-15-11	1450	500-3600-10-160	740
150-130-20-15	1450	500-2600-15-160	740
150-130-30-22	1450	500-2000-20-160	740
150-140-7-5.5	1450	500-3000-15-200	740
150-145-9-7.5	1450	500-2500-20-200	740
150-145-15-11	1450	500-2800-15-220	740
150-180-12-11	1450	500-2400-22-220	740
150-180-15-15	1450	500-4000-15-250	980
150-180-20-18.5	1450	500-2600-24-250	980
150-180-25-22	1450
150-180-30-30	1450

Conditions of use:

1. The medium temperature does not exceed +40℃, the intermittent use (no longer than 5 minutes) is +70℃, the density is 1.0～1.3kg/dm3, and the pH value is in the range of 5～9.
2. For pumps without internal gravity circulation cooling system, the motor part shall not exceed 1/2 exposed above the liquid surface.
3. In general, the pump must be used within the operating head range to ensure that the motor is not overloaded. If it needs to be used within the full head range, it should be specified when ordering so that the manufacturer can manufacture it.
4. During operation, the motor current must not exceed the rated current of the motor.
