Product Description

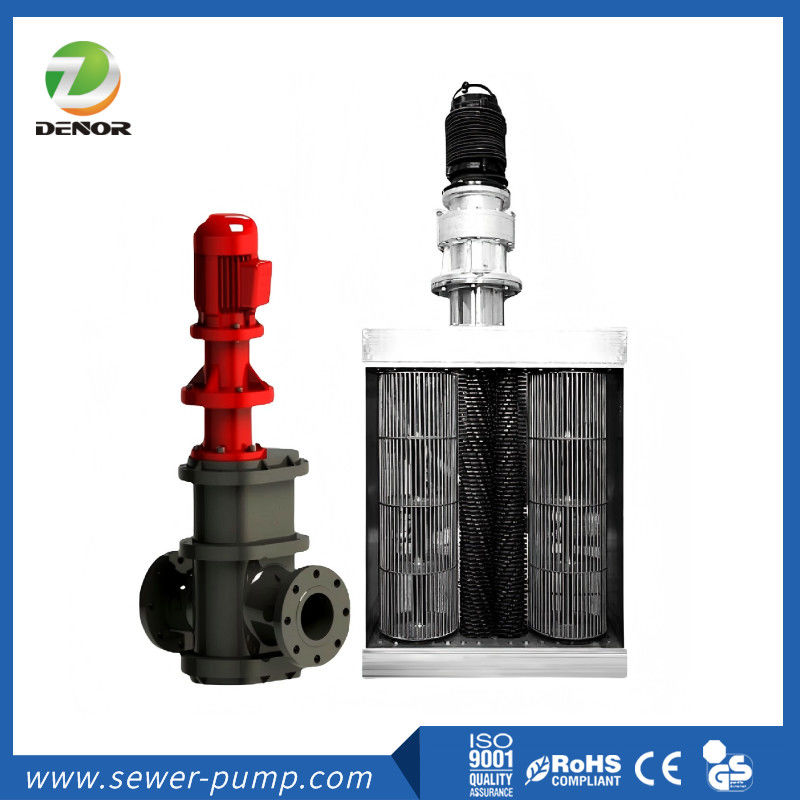

Waste Water Grinder

Denor powerful waste water grinder plows through a large volume of biosolids, rags, sludge, solid waste, institutional waste, screenings and more.
Denor wastewater grinder is a high-strength grinder ideal for a wide variety of applications. We have ideal grinders for smaller wastewater pump stations, or high-flow wastewater grinders for headworks.

The Wastewater Grinder features such construction features as heavy cast framing, explosion-proof wet and dry motors, and combination cutter-spacers.

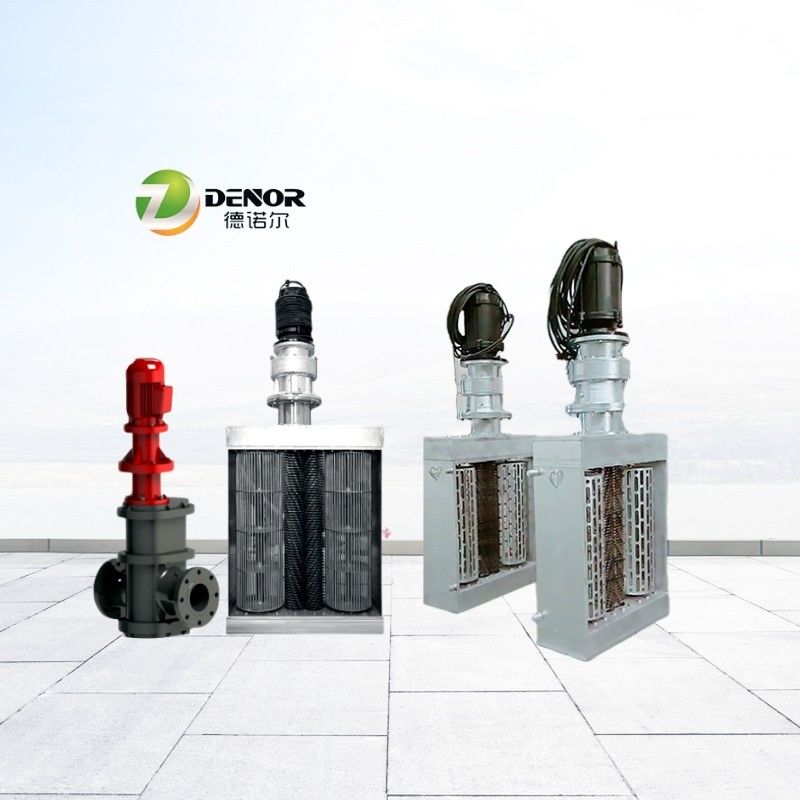

We offer without drum channel type waste water grinder, single drum channel type waste water grinder, double drum channel type waste water grinder, pipe type waste water grinder and rotary mechanical bar screen.

1. Without drum channel type waste water grinder

MODEL SELECTION

Model	Flow (m³/h)	Size(mm)			Weight(kg)
Model	Flow (m³/h)	A	B	C	Weight(kg)
DNRF-N80	80	1225	189	506	218
DNRF-N120	120	1352	286	603	230
DNRF-N170	170	1481	415	732	265
DNRF-N240	240	1644	578	895	300
DNRF-N300	300	1772	691	1008	320
DNRF-N400	400	1911	821	1138	350

DENOR free drum channel type crushing grille is suitable for small channels and small flow water

intakes,such as sewage lifting equipment in commercial basement.

Waste Water Grinder 0

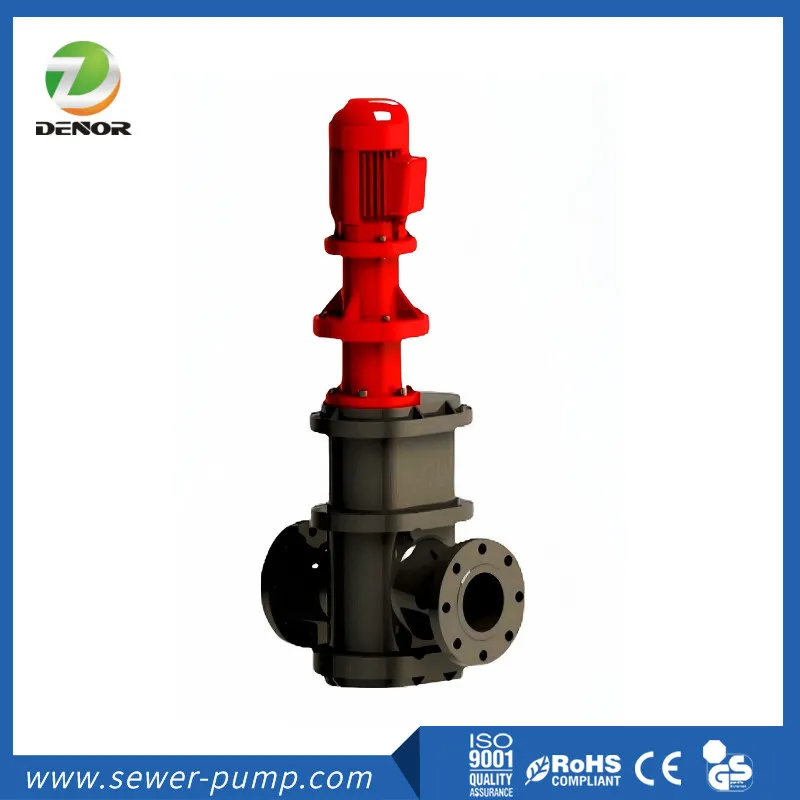

2. Pipe type waste water grinder

MODEL SELECTION

Model	Flow (m³/h)	Φ (mm)	Size(mm)					Weight(kg)
Model	Flow (m³/h)	Φ (mm)	A	B	C	D	E	Weight(kg)
DNRF-P90	90	100	1190	410	478	148	100	185
DNRF-P140	140	150	1240	460	516	173	150	200
DNRF-P185	185	200	1296	460	556	198	200	217
DNRF-P230	230	250	1299	460	825	223	250	255
DNRF-P275	275	300	1299	464	880	248	300	302

Waste Water Grinder 1

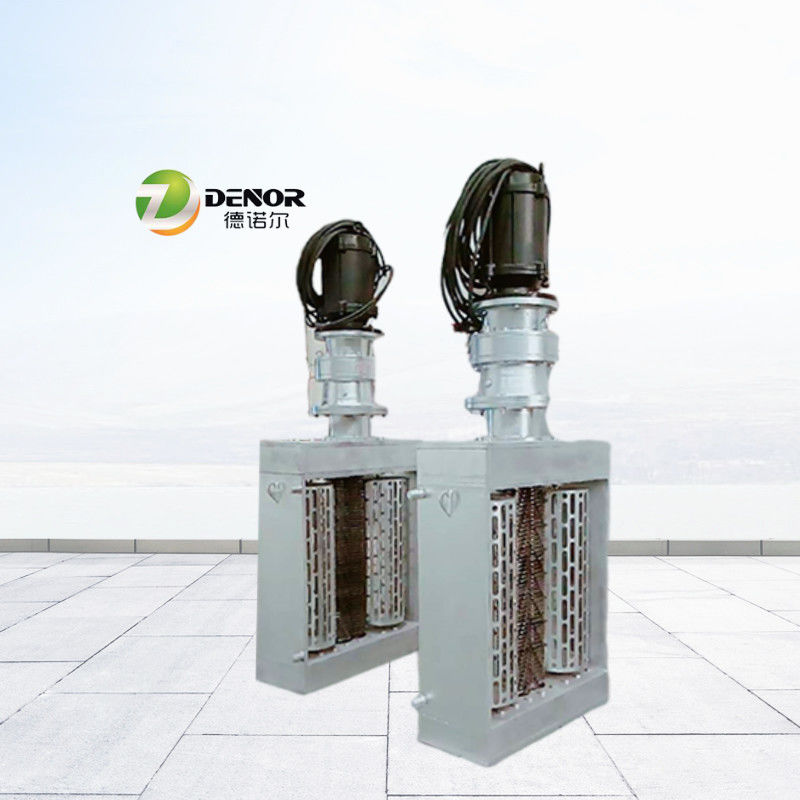

3. Single drum channel type waste water grinder

MODEL SELECTION

Model	Flow (m³/h)	Size(mm)				Width	Weight(kg)
Model	Flow (m³/h)	A	B	C	D	Width	Weight(kg)
DNRF-D600	600	1550	782	559	405	500	486
DNRF-D800	800	1728	960	737	405	500	526
DNRF-D1100	1100	1906	1138	912	405	500	572

Waste Water Grinder 2

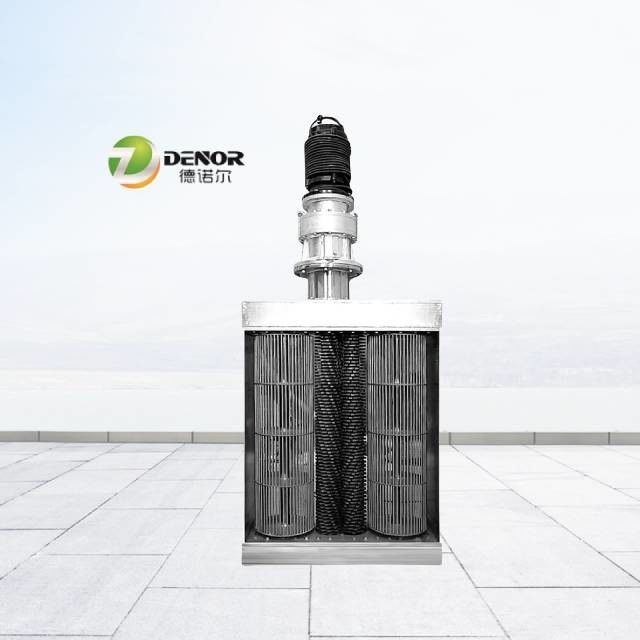

4. Double drum channel type waste water grinder

MODEL SELECTION

Model	Flow (m³/h)	Size(mm)				Width	Weight(kg)
Model	Flow (m³/h)	A	B		D	Width	Weight(kg)
DNRF-S1100	1100	1820	936	718	360	396	670
DNRF-S1600	1600	2076	1156	938	360	696	740
DNRF-S2200	2200	2312	1393	1175	360	700	815
DNRF-S3000	3000	2100	1176	958	547	1240	1010
DNRF-S4000	4000	2592	1403	1185	547	1240	1620
DNRF-S5200	5200	2512	1712	1492	572	1300	2130
DNRF-S6700	6700	2910	2110	1900	572	1300	2700

Denor double drum channel type crushing grille suitable for large channels, double drum design,greater flow.

Waste Water Grinder 3

Product Description

item	value
Place of Origin	Hubei, China
Brand Name	Denor
Model Number	5.5KW~15KW
Material	cast iron
Applicable People	Household sewage, restaurant sewage, municipal sewage, aquaculture, fish pond, agricultural irrigation, sewage treatment, building sewage
Packing	Export Wooden Packing
Color	Picture
MOQ	1 pieces
Product Size	Customized Size
Expiration date	1 Year

Waste Water Grinder 4

Waste Water Grinder 5

Waste Water Grinder 6

Waste Water Grinder 7

Waste Water Grinder 8

Waste Water Grinder 9

Waste Water Grinder 10
