Product Description

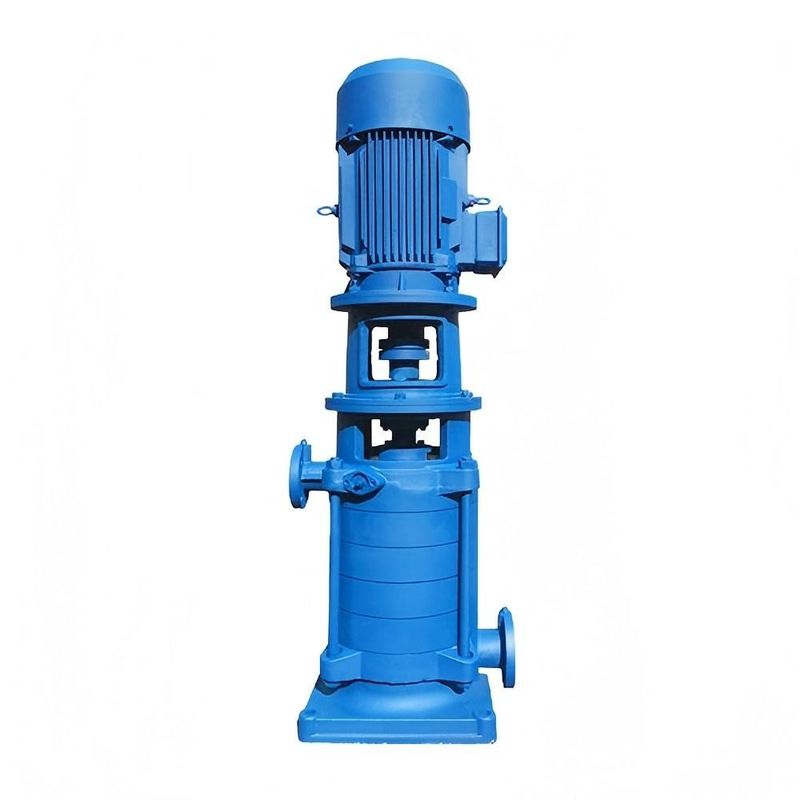

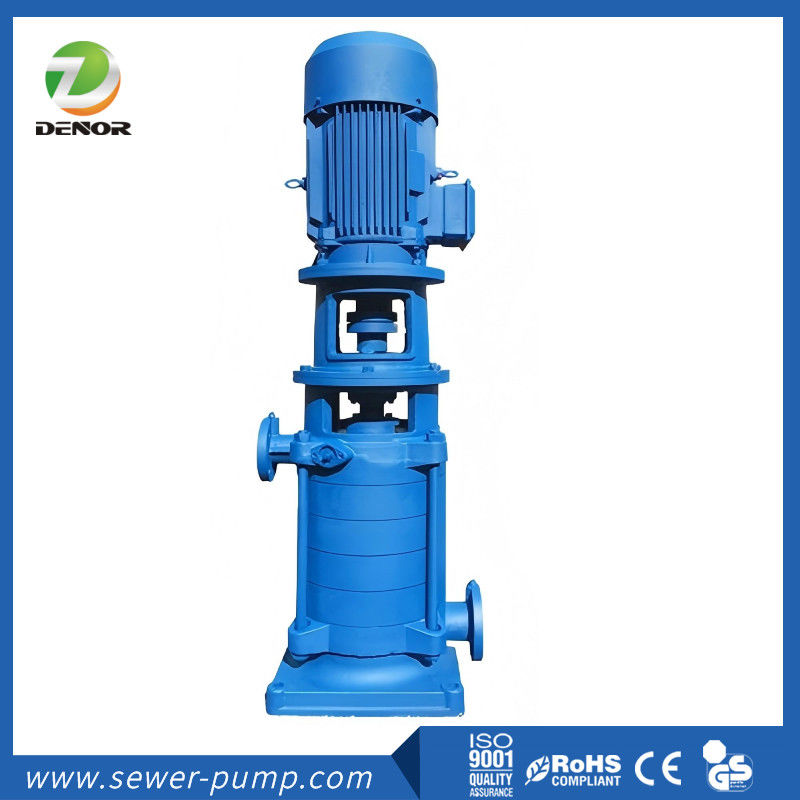

DL/DLR Vertical Multistage Water Pump

Name: DL/DLR Vertical Multistage Centrifugal Pump
Brand: Denor Fluid Equipment (wuhan) Co., Ltd.
SKU: DENOR-DL/DLR
Price: 3,000.00 USD
Availability: InStock

Denor DL/DLR Vertical Multistage Centrifugal Pump is a vertical multi-stage multi-segment structure for conveying solid particles in water and physical and chemical properties similar to liquid water in. The screw clamps the water inlet section, the middle section and the water outlet section into a whole. Each stage of the pump is equipped with an impeller and a guide vane. The axial force is solved by the hydraulic balance method, and the residual axial force is borne by the ball bearing and lubricated with grease. The shaft seal adopts soft packing or mechanical seal. The outlet of the same pump can be set with 1 to 5 outlets.

Denor DL/DLR Vertical Multistage Water Pumps are suitable for industrial and urban water supply and drainage, high-rise building pressurized water, fire booster, long-distance water, heating, bathrooms, boiler heating and pressurized water cycle, air conditioning and refrigeration systems and equipment for bottled water and other occasions.

Model meaning
For example: 150DLR150-30×3
150-inlet and outlet diameter
DL-vertical multistage centrifugal pump
R-hot
150-flow
30-single-stage head
3-stage

Application:

1. It is mainly used for high-rise building domestic water supply, fire constant pressure water supply, automatic spray water, automatic water curtain water supply, etc. It can also be used for water supply and drainage in factories and mines, long-distance water supply, supporting use of various equipment and water for various production processes.
2. It is used to transport diluted, clean, non-corrosive, non-explosive water and liquid without solid particles or fibers with physical and chemical properties similar to water.
3. The medium temperature of the DL vertical multistage centrifugal pump does not exceed 80℃, and the medium temperature of the DLR multistage centrifugal pump does not exceed 120℃.

Working Condition:

1. The medium used in the DL/DLR series multistage centrifugal pump should be similar to water, with a kinematic viscosity <150mm2/s, and no hard particles, and no corrosive properties.
2. This machine is used at an altitude of less than 1000 meters, if it exceeds, it should be mentioned in the order, so that the factory can provide you with more reliable products.
3. The operating temperature of the medium is -15℃～120℃.
4. The maximum system working pressure≤2.5MPa.
5. The ambient temperature should be lower than 40℃, and the relative humidity should be lower than 95%.

Feature:

1. DL/DLR vertical multi-stage pump has compact structure, small size and beautiful appearance. Its vertical structure determines the installation area is small, and its center of gravity coincides with the center of the pump foot, thus enhancing the pump's operational stability and service life.
2. Its suction and discharge ports are both horizontal, which simplifies the connection of pipelines.
3. According to needs, the suction port and the discharge port can be installed in the same direction or in different directions of 90°, 180°, 270° to meet different connection occasions.
4. The head of this pump can be increased or decreased according to the needs and combined with the outer diameter of the cutting impeller to meet the requirements, without changing the installation area, which is not available in other pumps.
5. The motor is equipped with a rain cover, and the pump can be used outdoors, eliminating the pump room and saving construction costs.
6. The rotor of the this machine has a small deflection, and the 4-pole motor is selected, so it runs smoothly, with low vibration, low noise and long service life.

Product Details:

Flow Rate	2 ~ 200m3/h
Head	23 ~ 230m
Efficiency	23% ~ 78%
Power	1.1 ~ 132kW
Speed	1480r/min
Inlet/Outlet Size	40 ~ 250m
Temperature Range	0 ~ 80℃
Working Pressure	≤2.4Mpa
NPSHr	1.4 ~ 4.7m
