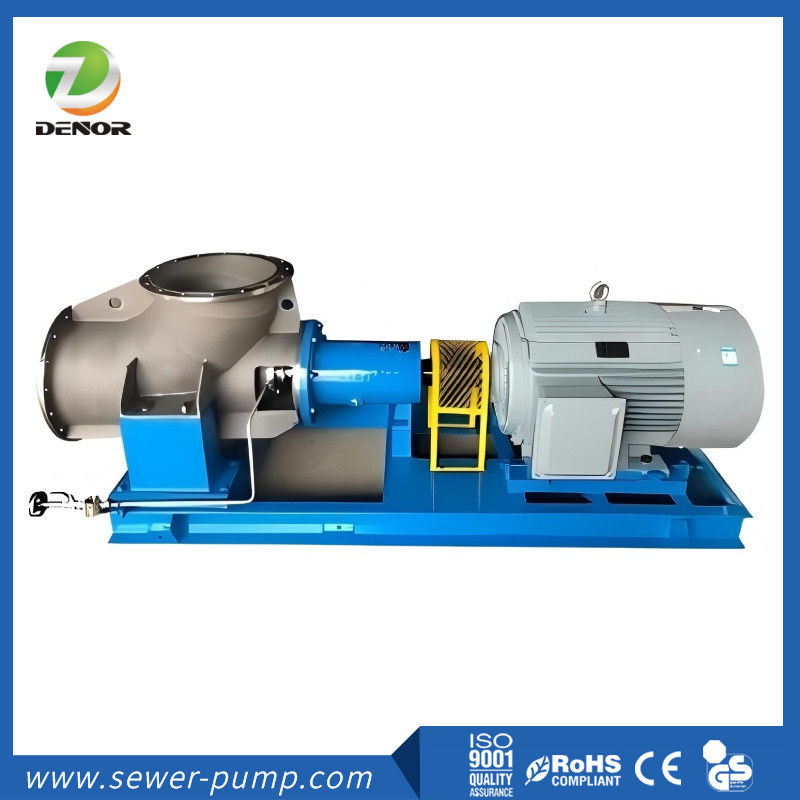

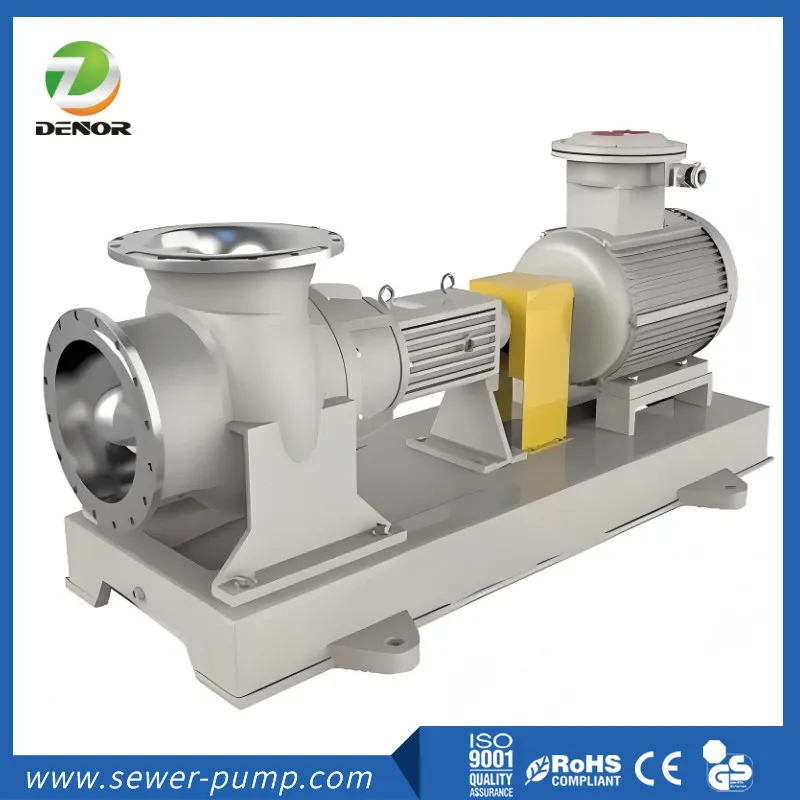

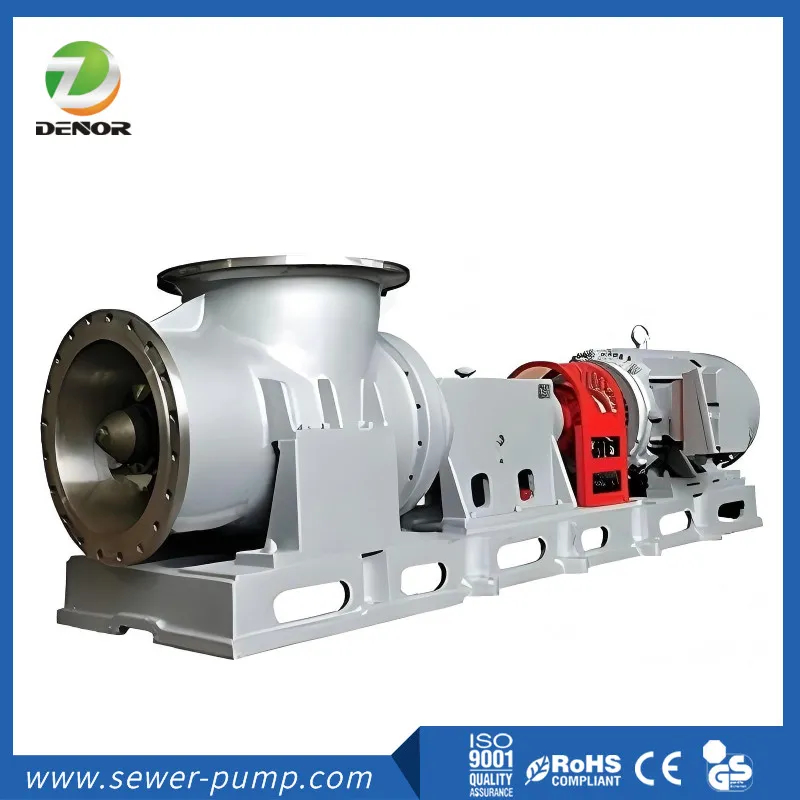

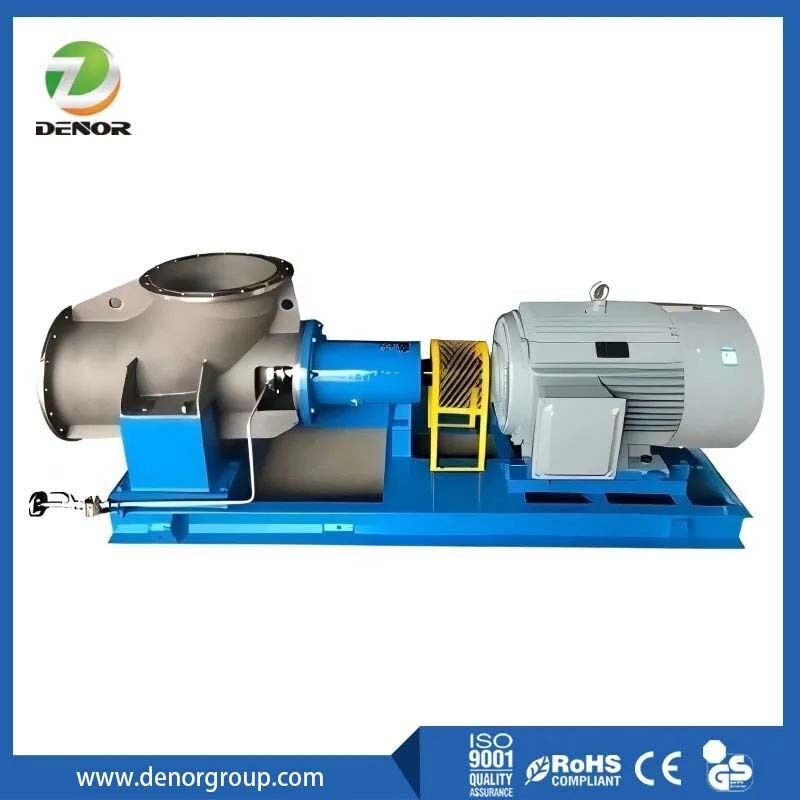

Name: Horizontal Axial Flow Pump
Brand: Denor Fluid Equipment (wuhan) Co., Ltd.
SKU: DENOR-ZLB
Price: 2,500.00 USD
Availability: InStock

Home > products > Axial Flow Pump >

Horizontal Axial Flow Pump

Place of Origin:

China

Brand Name:

DENOR

Certification:

ISO/CE/TUV

Model Number:

DENOR-ZLB

Request A Quote

Product Details

Material:

Stainless Steel / Cast Iron (Customizable)

Power Range:

7-1000kW

Power Supply:

380v 50hz, 3 Phase

Inlet/Outlet Diameter:

Customizable

Installation Type:

Horizontal

Packaging:

Wooden Case Packing

Payment & Shipping Terms

Horizontal Axial Flow Pump

Get Best Price

+86 17371285393

denor.jack1@gmail.com

Contact Now

Product Description

Industrial Axial Flow Pump With Advanced Technology Customization Manufacturers

Axial flow pump (AFP) is high-performance pump that is ideal for high-flow and low-head applications.
Axial flow pumps are centrifugal pumps in which the fluid is pumped parallel to the pump shaft.
The main advantage of an axial flow pump is that it has a relatively high discharge (flow rate) at a relatively low head (vertical distance).

Power range: 7-1000kW
Voltage: 380v(Customized)
Rotor Diameter: Customized
Material: Cast Iron / stainless steel
Installation: horizontal

Where to use Axial Flow pumps
Axial flow pumps are used for large volume flows and small delivery heads.
Typical areas of application are:
Irrigation
Sewage Treatment Plants
Cooling Water Pumps
Drainage Systems
large Water Parks

They can be used as circulating water pumps in power plants. As well as this, they’re commonly used in the chemical industry for circulating large amounts of fluids in evaporators. Whilst being useful in flood dewatering applications where substantial quantities of water need to be moved over a short distance, for instance over a levee or dyke. Marine applications include impounding pumps for docks and ports.

The axial flow pump is designed with a customized inlet and outlet size, making it perfect for a variety of applications.

The AFP is also available for ODM/OEM orders. This means that you can order a customized pump that is designed specifically for your application.

Technical Data:

Model	Installation Angle blade	Capacity m3/h	Head m	Speed r/min	EFF %	Shaft Pwer N
DNR-250		300	2.5	980	60	3.4
DNR-300		520	3	980	62	6.8
DNR-350		1350	4	980	65	29.6
DNR-450		2200	4	980	68	35.2
DNR-500		2650	4	740	70	42
DNR-550		4000	4	740	70	62.8
DNR-700	-4°C	4772	3.3	340	75.6	56.7
	-2°C	5320	3.4	400	76.1	64.7
	0°C	5700	3.5	430	76.9	70.7
	-2°C	6154	3.6	460	76.6	78.8
	4°C	6579	3.6	490	75.2	85.8
DNR-900	-4°C	7748	3.3	424	76.1	94.3
	-2°C	8407	3.4		77.4	100.6
	0°C	9000	3.5		78	110
	-2°C	9656	3.6		77.3	119.1
	4°C	10280	3.6		77.4	130.2
DNR-1000	-4°C	9210	3.3	380	76.3	111.8
	-2°C	1078	3.4		77.5	132.6
	0°C	11000	3.5		78	134.4
	-2°C	11970	3.6		77.3	151.1
	4°C	12700	3.6		76.5	162.8
