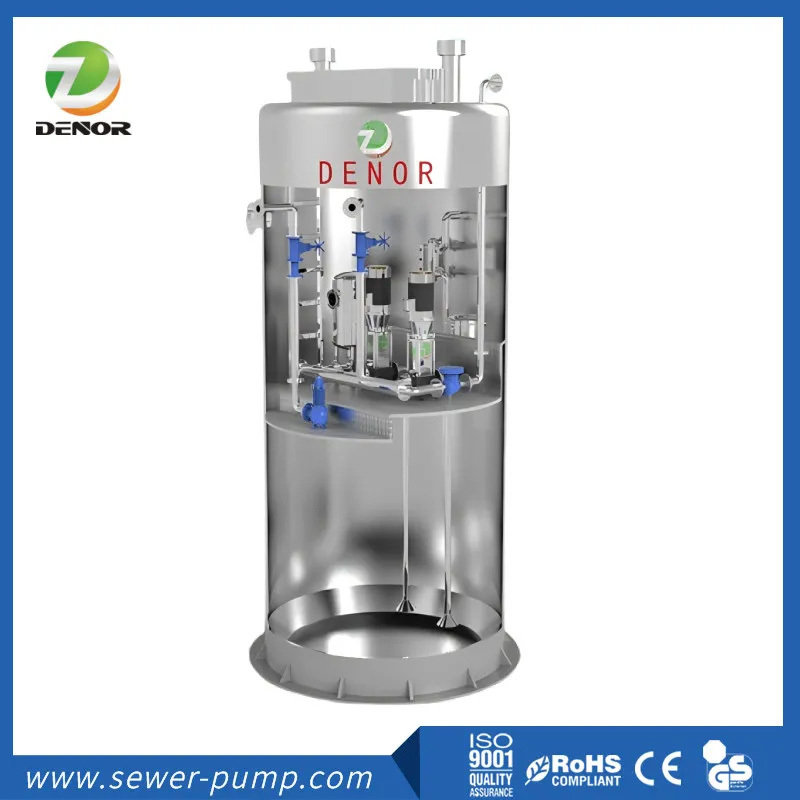

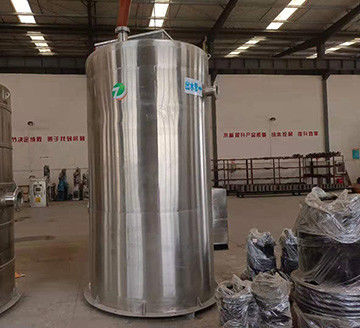

Customized Stainless Steel Water Supply Pump Station
A water supply pump station is a critical infrastructure component in the distribution of clean water for various purposes, including drinking water, industrial processes, irrigation, and firefighting. Its primary function is to pump and distribute water from a source, such as a well, reservoir, river, or treatment plant, to the local water supply system or other designated locations. Water pumping stations are essential for maintaining adequate water pressure and ensuring a reliable supply of water to communities and facilities.
Denor integrated water supply pump station can be customized according to customer needs. This pump station is a new generation of intelligent water supply equipment, which can realize unattended operation and can be widely used in municipal and secondary water supply. This pump station realizes the advantages of unmanned management of water supply, fast installation, low investment and small footprint.
Performance Parameter:
● Equipment name: Integrated intelligent water supply pump station
● Equipment model: DNRP-GS
● Shaft diameter: 2000-4200mm (depending on the specific situation)
● Pump station flow: 1900-72000m3/d
● Shaft height effective volume 7~25 times/hour
● Start-stop times:2000~12000mm (subject to availability)
● Pump number: 4-128M32 ~4 PCS
Main Features:
For circulating water e.g. water/glycol at heat recuperation systems
Unit in compact design with water collecting tub/frame with adjustable feet
Applicable with pump, expansion tank, strainer, safety valve, butterfly valves, ball valve, pressure and temperature indicator
If required, unit can be equipped with plate heat exchanger for heating of water e.g. water/glycol with the use of steam or hot water
Water circulation with constant water flow or with frequency converter for regulated water flow possible
Customized according to client specification and request
Fully welded, sanitary design
Materials And Characteristic Values
Completely made of stainless steel (AISI 304 or AISI 316)
Water temperatures: from -40 to +120°C possible
Product Parameters
| Integrated Pump Station |
| Product Name |
Stainless Steel Integrated Water Supply Pump Station |
| Components |
Standard Materials |
| Cylinder |
Stainless Steel (SUS304) |
| Shaft Cover |
Stainless Steel (SUS304) |
| Manhole Cover |
Aluminum Alloy Patterned Plate |
| Handrail |
Stainless Steel (SUS304) |
| Ventilation Pipe |
Stainless Steel (SUS304) |
| Pipeline |
Stainless Steel (SUS304) |
| Check Valve |
Rubber Plate Cast Iron Valve Body |
| Gate Valve |
Rubber Plate Cast Iron Valve Body |
| Flexible Joint |
Hot-Dip Galvanized Flange/Rubber |
| Water Pump |
Cast Iron (HT250) |
| Coupling Device |
Cast Iron (HT200) |
| Guide Rail/Guide Chain |
Stainless Steel (SUS304) |
| Ladder |
Aluminum Alloy |
| Maintenance Platform |
Hot-Dip Galvanized Steel + Stainless Steel Frame |
| Crushing Grid |
Cast Iron Housing Alloy Blade |
| Basket Grid |
Stainless Steel (SUS304) |
| Bolts And Nuts |
Stainless Steel (SUS304) |
| Pressure Plate |
Cast Steel (ZG500) |
| Anchor Standard Parts |
Hot-Dip Galvanized Steel |
| Electric Control Cabinet Housing |
Stainless Steel (SUS304) |
| *All Product Parameters Are Subject To The Actual Product Received. |
