Product Description

MIP Fluorine Plastic Lined Slurry Pump

The MIP series fluorine plastic lined slurry pump is suitable for conveying phosphoric acid slurry, fluorosilicic acid containing silicone, mother liquor, etc; Various acid solutions and corrosive slurry electrolytes for wet smelting of zinc, lead, gold, silver, copper, manganese, cobalt, rare earth, etc; Pickling systems, sewage with impurities, and other industries are suitable for both clear liquids and slurries.

Flow Range	9-220m3/h
Head Range	25-65m
Power	4-75kw
Operating temperature	<170℃

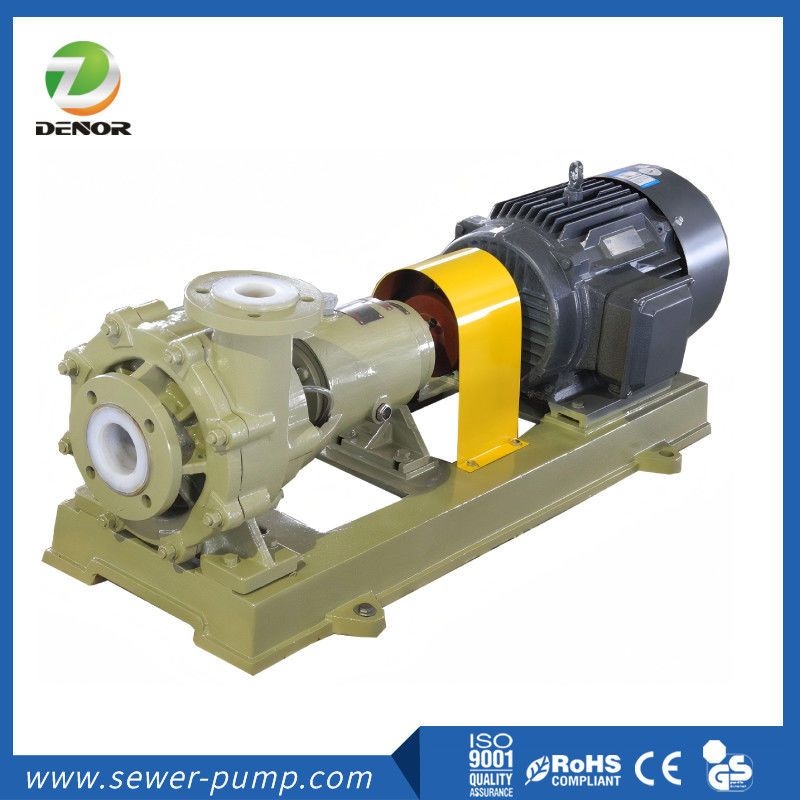

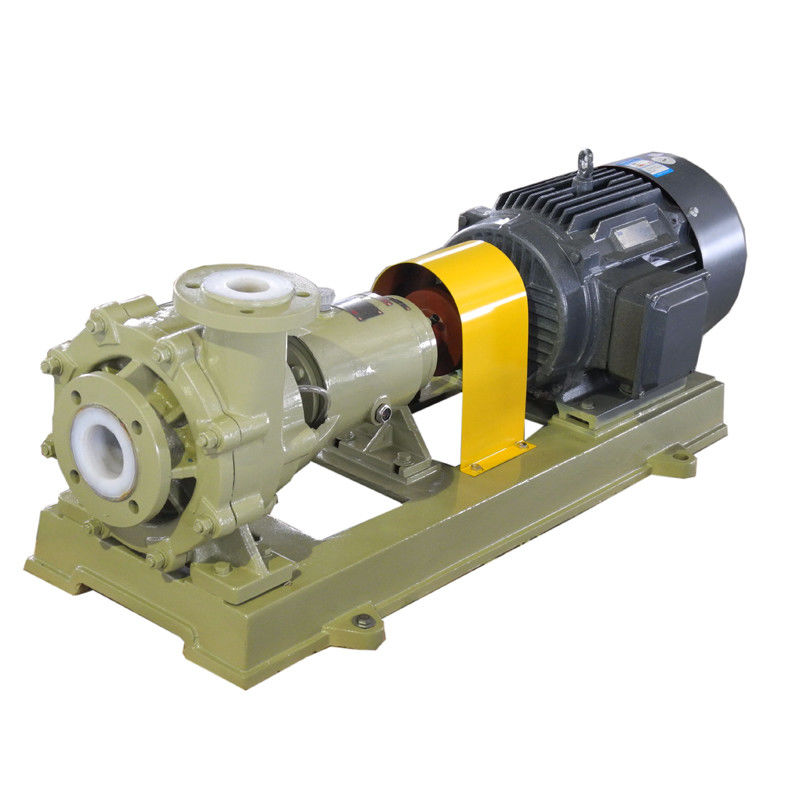

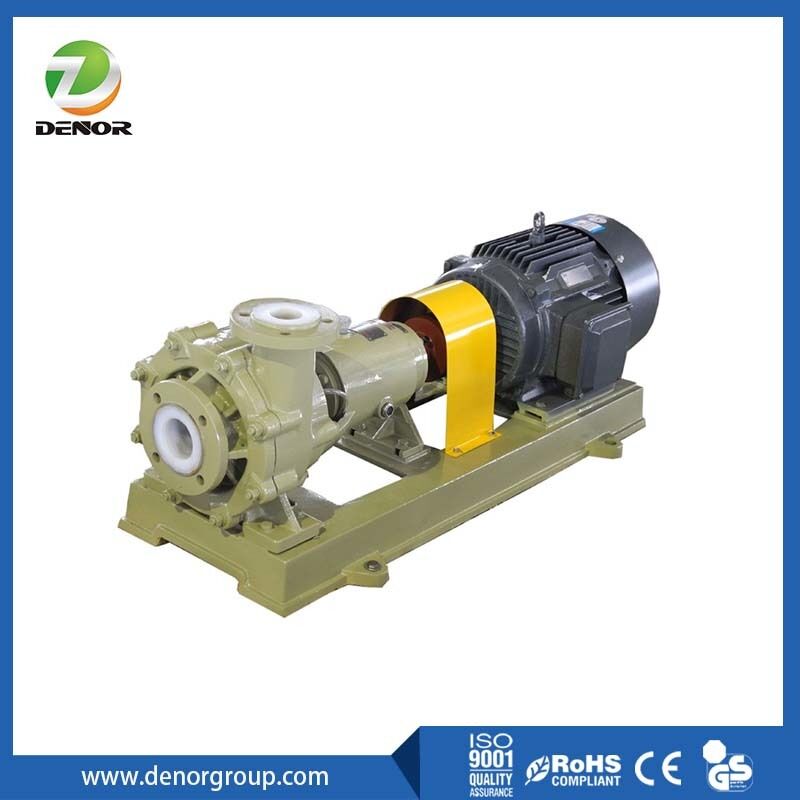

Photo diagram

MIP Fluorine Plastic Lined Slurry Pump 0

Product Features

The slurry pump impeller design is adopted, the flow channel is closed, the front and rear cover plates have spoiler blades, and it has the anti-clogging ability of the open impeller and the efficiency of the closed impeller, and the side outlet.

The built-in cartridge PEEK mechanical seal can effectively withstand 40%-50% solid content slurry. filter press first choice.

Application

Suitable for the transportation of corrosive liquids and slurries in the sulfuric acid phosphorus fertilizer industry, non-ferrous metal smelting industry, new energy lithium battery industry, chlorine alkali industry, petrochemical industry, wet desulfurization circulating pump, coal chemical industry.

Standard parameter

NO.	Type	Flow	Head	EFF	NPSHr	Aperture	Speed	Power	Weight
		m³/h	m	%	m	mm	r/min	kW	Kg
1	MIP50-40-130	9	26	42	3.2	50×40	2900	4	110
		* 15	25	44
		18	25	46
2	MIP50-40-165	9	39	43	3.2	50×40	2900	5.5	145
		* 15	38	45
		18	38	47
3	MIP50-40-220	9	65	40	3.2	50×40	2900	7.5	155
		* 15	65	42
		18	65	44
4	MIP65-50-130	18	25	41	3.5	65×50	2900	5.5	162
		* 25	25	43
		30	24	45
5	MIP65-50-165	18	39	45	3.5	65×50	2900	7.5	168
		* 25	38	47
		30	36	48
6	MIP65-50-220	20	66	48	3.5	65×50	2900	15	210
		* 30	65	50
		35	63	52
7	MIP80-65-130	35	26	63	4.0	80×65	2900	7.5	170
		* 50	25	65
		60	25	66
8	MIP80-65-165	35	39	70	4.0	80×65	2900	15	230
		*50	38	70
		60	36	70
9	MIP80-65-220	35	66	60	4.0	80×65	2900	22	305
		* 50	65	66
		60	63	67
10	MIP100-80-165	70	34	58	4.5	100×80	2900	18.5	255
		* 100	32	65
		110	30	67
11	MIP125-100-220	150	60	58	4.8	125×100	2900	75	985
		*200	65	60
		220	63	62
