Product Description

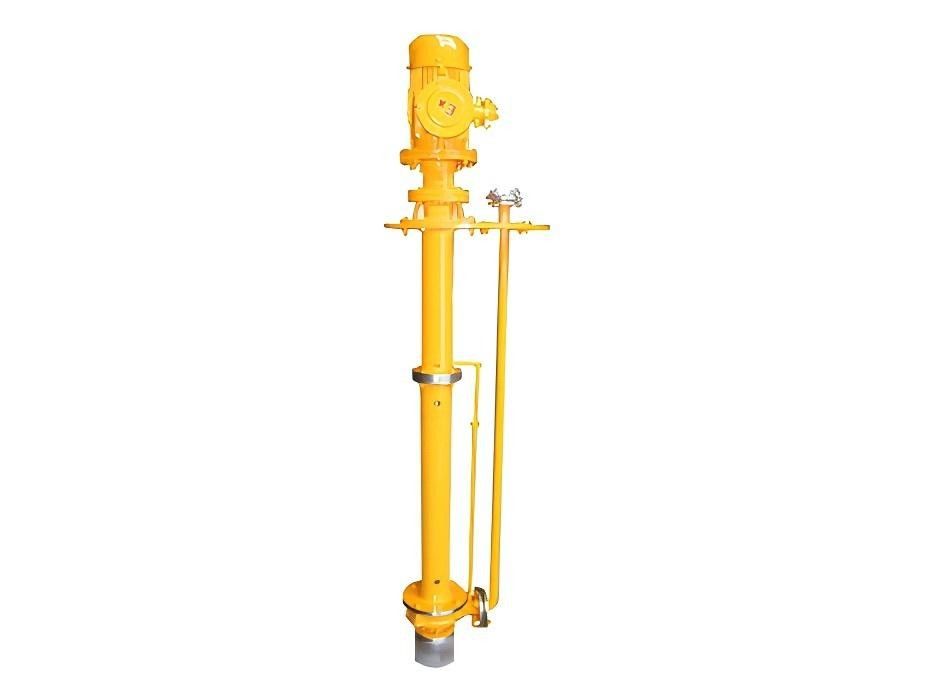

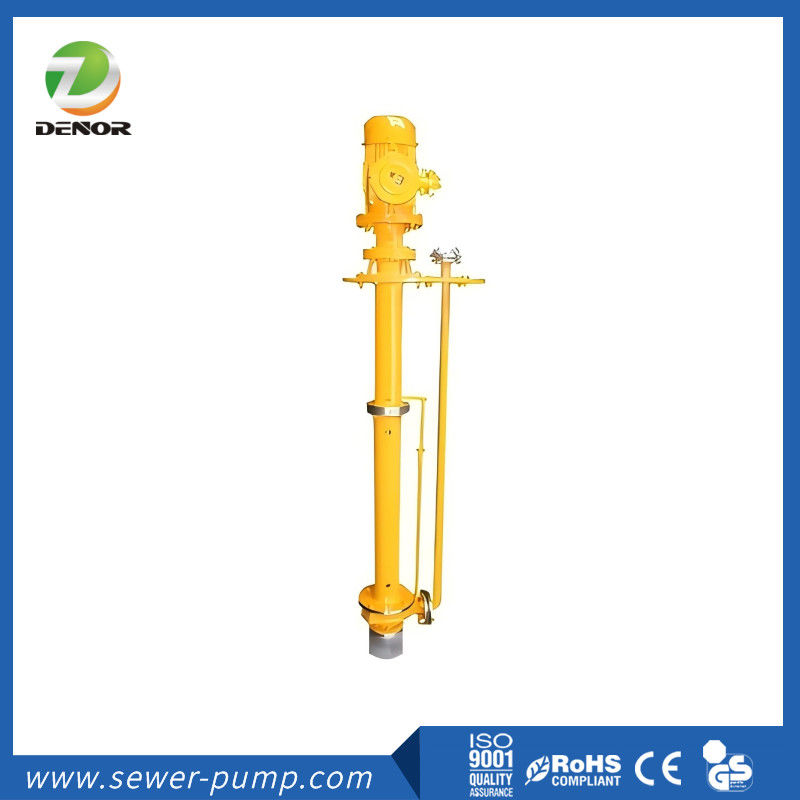

FY Type Vertical Under Liquid Pump

FY Type Vertical Under Liquid Pump is a new type of pump based on the traditional under liquid pump with improved design. The pump eliminates the mechanical seal commonly used in other liquid pumps and selects the impeller with a unique structure, making the pump efficient and energy-saving, no leakage, long life, so that it is widely used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, sewage treatment and other industries.

Product advantage

1.The pump is a vertical liquid pump, beautiful appearance, directly installed on the storage of the transported medium, no additional floor space, thus reducing infrastructure investment.
2. The mechanical seal is cancelled, which solves the trouble of frequent maintenance of other liquid pumps because of the mechanical seal is easy to wear, saves the operating cost of the pump, and improves the work efficiency.
3. The unique centrifugal double balance impeller is used to transport clean media without solid particles, which has low vibration noise and high efficiency. The open double balance impeller is used to transport the liquid with solid particles and short fibers, which runs smoothly and does not clog.

Selection range

● Conveying a variety of clean, no particles or containing certain particles of the medium.
● Petroleum, chemical, pharmaceutical, paper, metallurgy, sewage treatment and other industries.
● Conveying all kinds of strong oxidizing acid and alkali (concentrated sulfuric acid, fuming nitric acid, nitric acid, sodium hydroxide, potassium hydroxide) and other corrosive media equipment.

Performance parameter

Model	outlet Diameter (mm)	Q		H (m)	Rotational Speed (r/min)	P(KW)
Model	outlet Diameter (mm)	(m3/h)	(L/s)	H (m)	Rotational Speed (r/min)	轴功率	电机功率KW
25FY-16	25	3.6	1	16	2900	0.713	1.5
25FY-16A	25	3.27	0.91	13	2900	0.713	1.5
25FY-25	25	3.6	1	25	2900	1.16	2.2
25FY-25A	25	3.27	0.91	20	2900	1.16	2.2
25FY-41	25	3.6	1	41	2900	2.51	4
25FY-41A	25	3.27	0.91	33	2900	2.51	3
40FY-16	32	7.2	2	16	2900	0.78	2.2
40FY-16A	32	6.55	1.82	13	2900	0.78	1.5
40FY-26	32	7.2	2	26	2900	1.45	3
40FY-26A	32	6.55	1.82	21	2900	1.45	3
40FY-40	32	7.2	2	40	2900	2.53	5.5
40FY-40A	32	6.55	1.82	32	2900	2.53	5.5
50FY-16	40	14.4	4	16	2900	1.18	3
50FY-16A	40	13.1	3.64	13	2900	1.18	3
50FY-25	40	14.4	4	25	2900	1.96	4
50FY-25A	40	13.1	3.64	20	2900	1.96	3
50FY-40	40	14.4	4	40	2900	3.73	7.5
50FY-40A	40	13.1	3.61	33	2900	3.73	5.5
65FY-16	50	28.8	8	16	2900	2.16	4
65FY-16A	50	26.2	7.28	13	2900	2.16	3
65FY-25	50	28.8	8	25	2900	3.56	5.5
65FY-25A	50	26.2	7.28	21	2900	3.56	5.5
65FY-40	50	28.8	8	40	2900	6.04	11
65FY-40A	50	26.2	7.28	33	2900	6.04	11
80FY-15	65	54	15	15	2900	3.34	7.5
80FY-15A	65	49.1	13.65	12	2900	3.34	7.5
80FY-24	65	54	15	24	2900	5.43	11
80FY-24A	65	49.1	13.65	20	2900	5.43	11
80FY-38	65	54	15	38	2900	9.64	18.5
80FY-38A	65	49.1	13.65	31	2900	9.64	15
100FY-23	80	100.8	28	23	2900	9.25	18.5
100FY-23A	80	91.8	25.5	18	2900	9.25	15
100FY-37	80	100.8	28	37	2900	14.73	22
100FY-37A	80	91.8	25.5	31	2900	14.73	22
